5183 5000 Series Aluminium Sheet Checker Plate O-H112 0.3-10mm
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | haiwo |
| Model Number | 5183 |
| Minimum Order Quantity | 1000 kilograms |
| Price | $3.50/kilograms |
| Packaging Details | Export standard package: bundled ,wooden box, suit for all kinds of transport,or be required |
| Delivery Time | 10-45 work days |
| Payment Terms | T/T |
| Supply Ability | 25000 Ton/Tons per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 5183 Aluminium Sheet | Grade | 5000 Series |
|---|---|---|---|
| Temper | O-H112,T3-T8 | Type | Plate |
| Application | Aviation Industry, Aircraft Manufacturing | Processing Service | Bending, Decoiling, Welding, Punching, Cutting |
| Standard | ASTM AISI JIS DIN GB | Surface Treatment | Coated,Embossed,anodizing,customer Request,Plain/Coated/Embossed |
| High Light | 5183 Aluminium Sheet Checker Plate,Aluminium Sheet Checker Plate O-H112,5000 Series Aluminum Sheet 0.3mm |
||
You can tick the products you need and communicate with us in the message board.
| Alloy or not | Is alloy | |
|---|---|---|
| Loading port | SHANGHAI PORT | |
| Size | As customer require | |
| Suface | Bright,anodizing,polished,smooth ect | |
| Color | Silver,while,or customer requirements | |
| Material | 1000/2000/3000/5000 or other |
Product Description

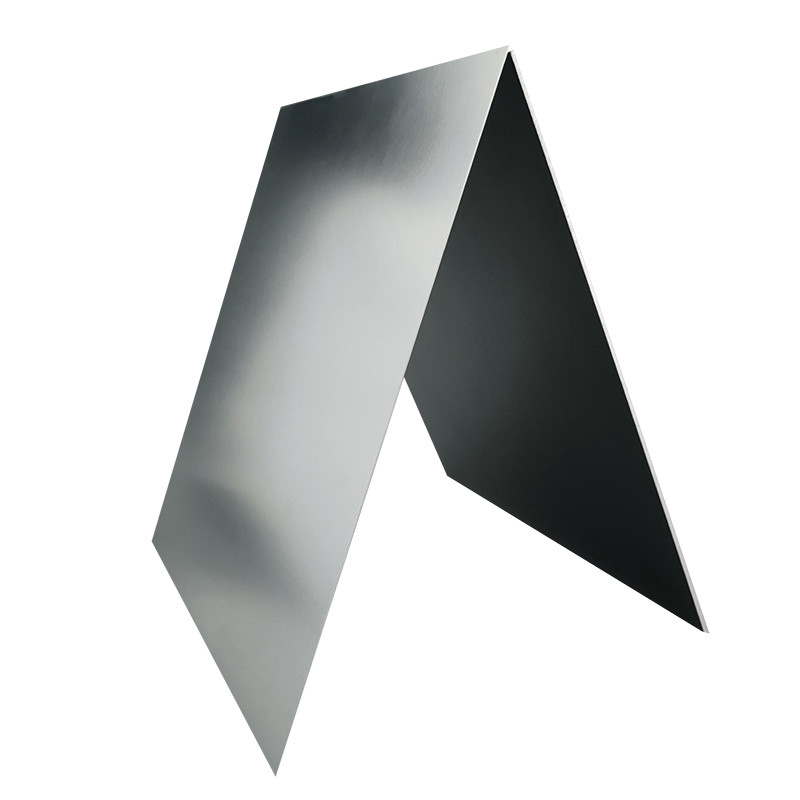

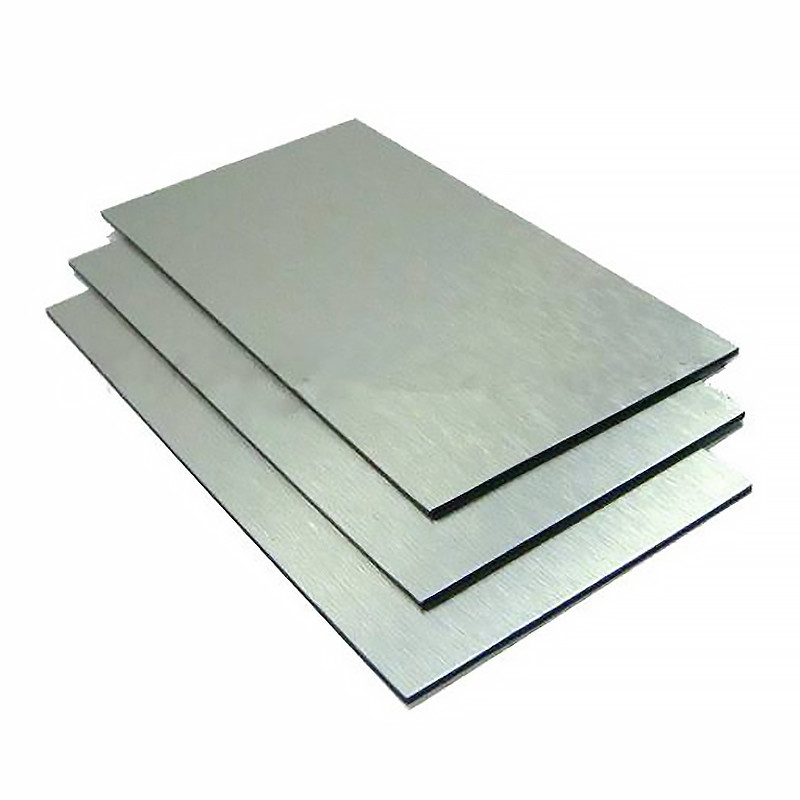

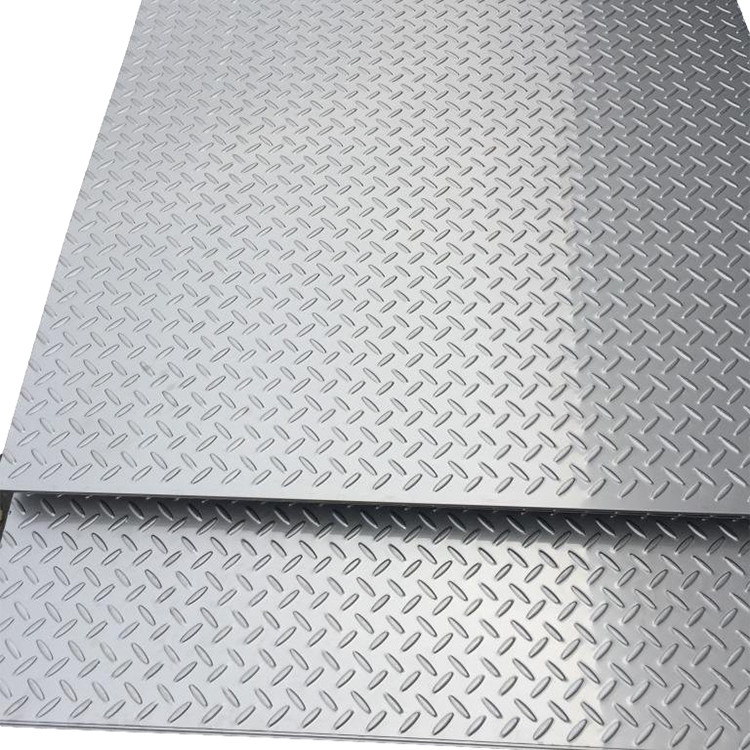

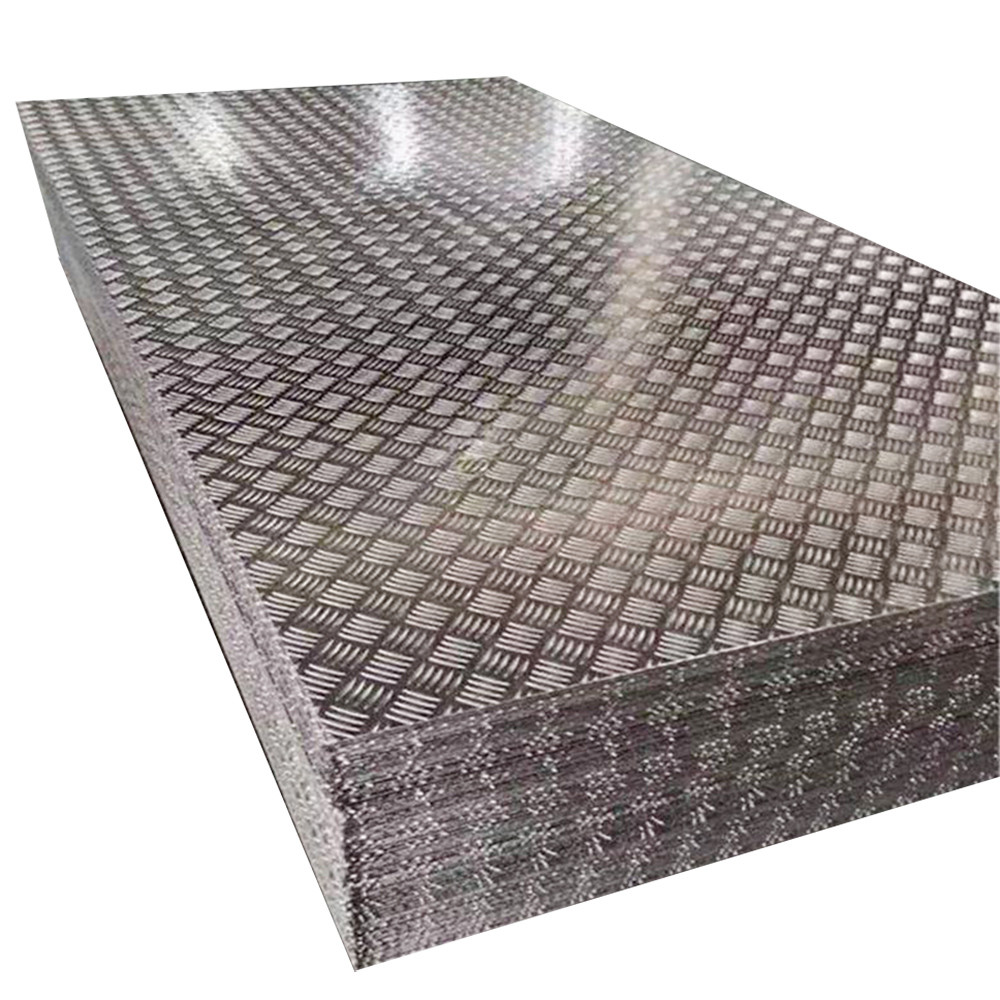

5183 Aluminium Sheet Checker Plate 5000 Series Cold/Hot Rolled Plate 0.3-10mm
Aluminum plate refers to the rectangular plate made of aluminum ingot rolling. It can be divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium-thick aluminum plate and patterned aluminum plate.
According to the alloy composition: 1. High purity aluminum plate; 2. Pure aluminum plate; Aluminum alloy plate; 3. In line with aluminum plate; 4. Aluminized aluminum plate.
According to the thickness, it is divided into: 1. Thin plate 0.15-2.0mm; 2. Conventional plate 2.0-2.6mm; 3. Medium thickness plate 6.0-25mm; 4. Thick plate 25-200mm; Ultra thick plate 200mm above.

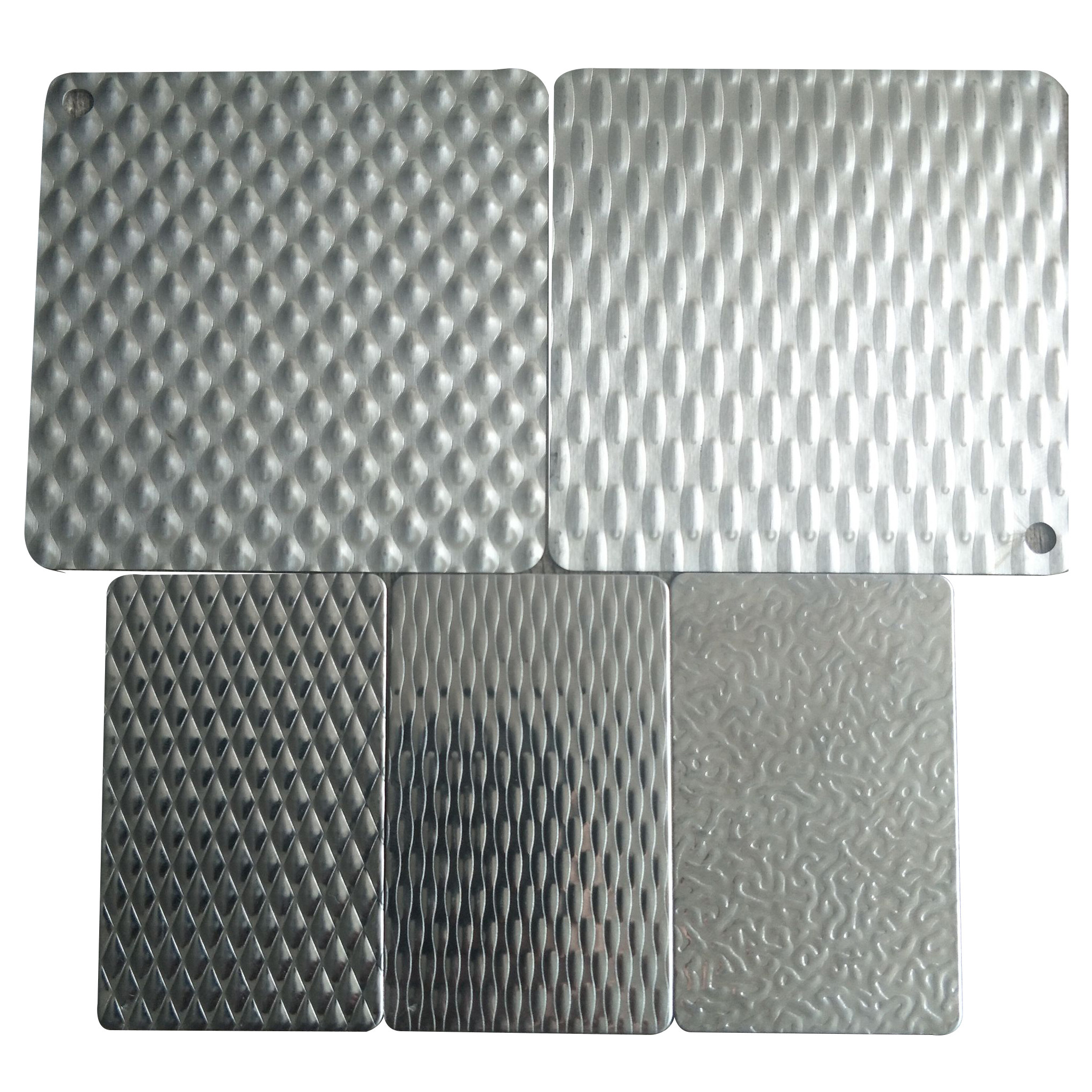

Type: brushed aluminum plate; Aluminum oxide plate; PS aluminum plate; Mirror aluminum plate; Embossed aluminum plate, etc.
|
Brand
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
AL
|
|
5183
|
0.4
|
0.4
|
0.01
|
0.5-1.0
|
4.3-5.2
|
0.05-0.25
|
0.25
|
0.15
|
remains
|
Quality Characteristics
|
Brand
|
Tensile strength
|
Yield strength
|
Hardness
|
Elongation
|
|
5183
|
≥270Mpa
|
≥120MPa
|
HB45-75
|
more than 12
|
| Aluminium Sheet / Aluminium Plate/Strip/Foil | ||
| 1 | Production Standard | ASTM, AISI,EN,DIN,JIS,GOST,GB,etc |
| 2 | Material | 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000 |
| 3 | Width | 50mm-2500mm or as the customer’s request |
| 4 | Longth | 50mm-8000mm or as the customer’s request |
| 5 | Thickness | Foil:0.001-0.5 ; Strip:0.01-3mm ; Sheet:0.1-6mm ; Plate:6.0-500mm |
| 6 | Size error | Thickness error:±0.005mm Width error:0.1mm |
| 7 | Surface | Coated, Embossed,Brushed, polished, Anodized,etc |
| 8 | Temper |
O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. |
| 9 | OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| 10 | Payterm | Ex-work, FOB, CIF , CFR, etc |
| 11 | Payment | T/T, L/C, Western Union, etc |
| 12 | Delivery Time | Within 3 days for our stock size,10-20days for our production |
| 13 | Package |
Export standard package: bundled ,wooden box, suit for all kinds of transport, or be required |
| 14 | MOQ | 10kg |
| 15 | Sample | Free and available |
| 16 | Quality | Certificate of Test,SGS,ISO9001,TVE |
| 17 | Export To |
Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Brazil,Thailand,Korea,India, Egypt,Kuwait,Oman,Viet Nam,South Africa,Dubai,England,Holland,Russia,etc |
| 18 | Application |
Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc |
| Garde | Chemical composition | ||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other | Al | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | 0.03 | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | - | 0.05 | 0.03 | 0.03 | 99.6 |
| 1100 | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | - | - | 0.1 | - | 0.15 | 99 | |
| 2A12 | 0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.1 | 0.3 | 0.15 | 0.1 | remains | |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-0.1 | 0.4-0.8 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 2014 | 0.5-1.2 | 0.7 | 3.9-5 | 0.4-1.2 | 0.2-0.8 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | 0.15 | remains |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.2-0.6 | 0.1 | - | 0.25 | 0.1 | 0.15 | remains |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3-0.8 | 0.2-0.8 | 0.2 | - | 0.4 | 0.1 | 0.15 | remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | 0.15 | remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | 0.15 | remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | 0.15 | 0.15 | remains |
| 5182 | 0.2 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | 0.15 | 0.15 | remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | 0.15 | 0.15 | remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | - | 0.1 | 0.1 | 0.15 | remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1 | 0.6-1.2 | 0.25 | - | 0.2 | 0.1 | 0.15 | remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-5.6 | 0.2 | 0.15 | remains | |
