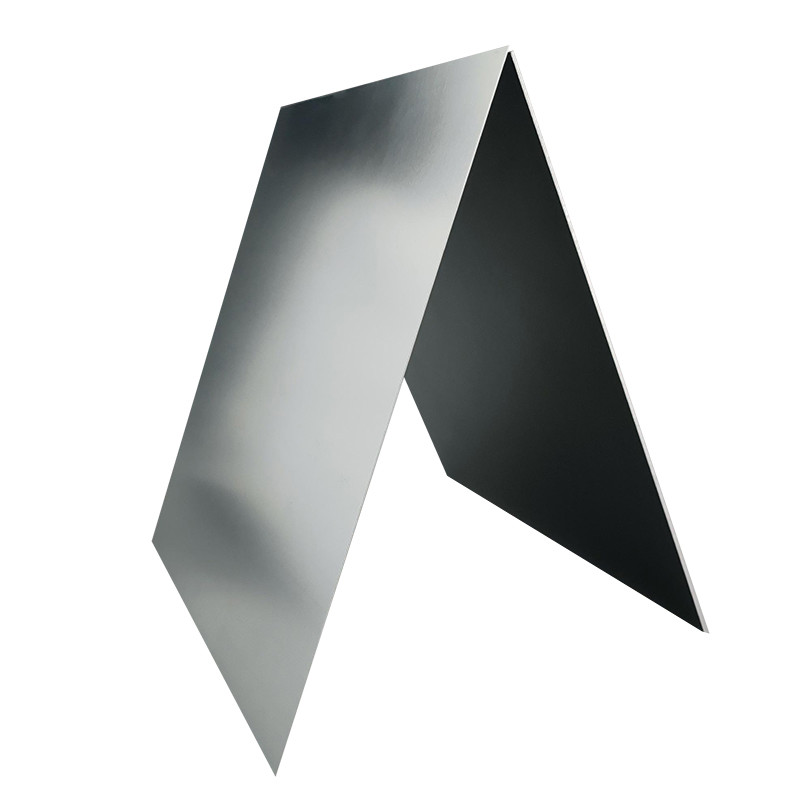

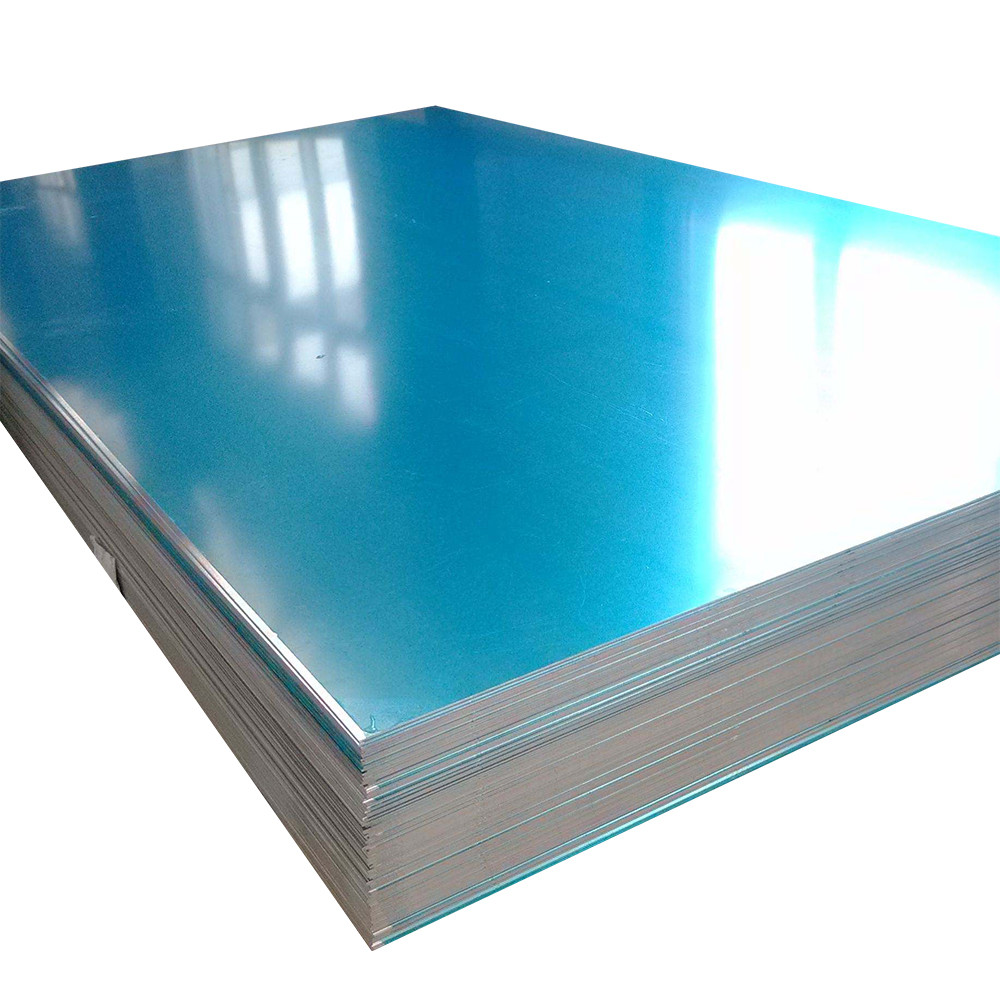

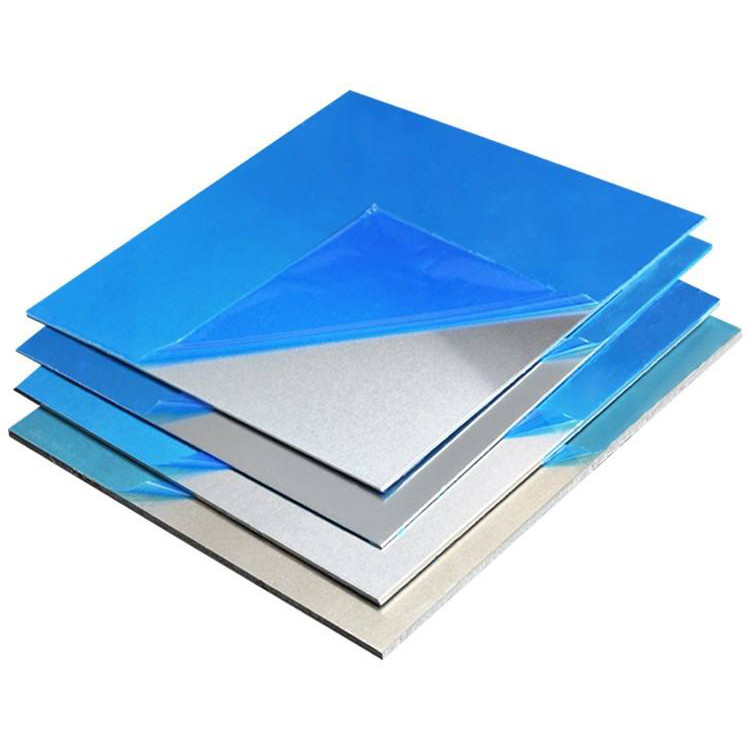

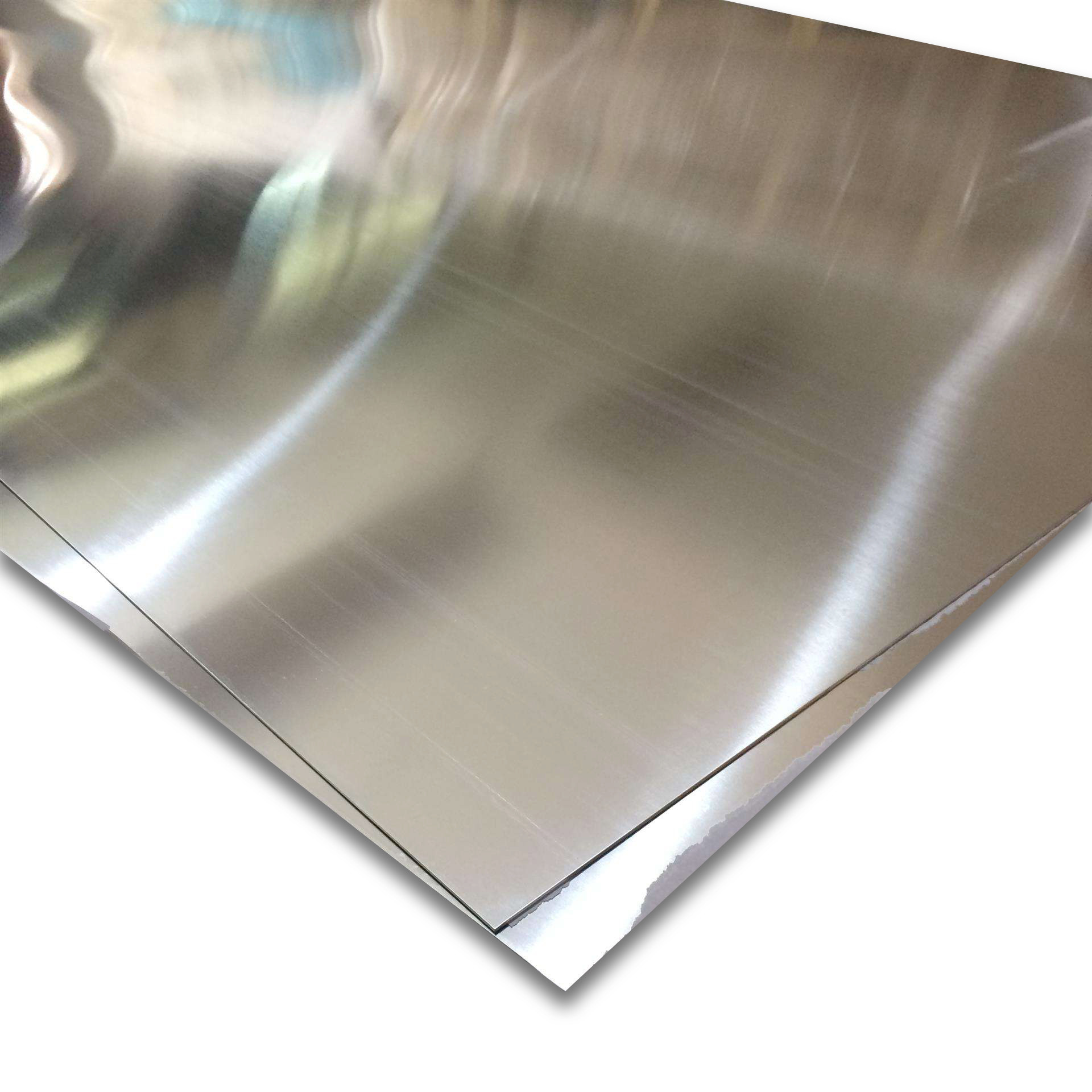

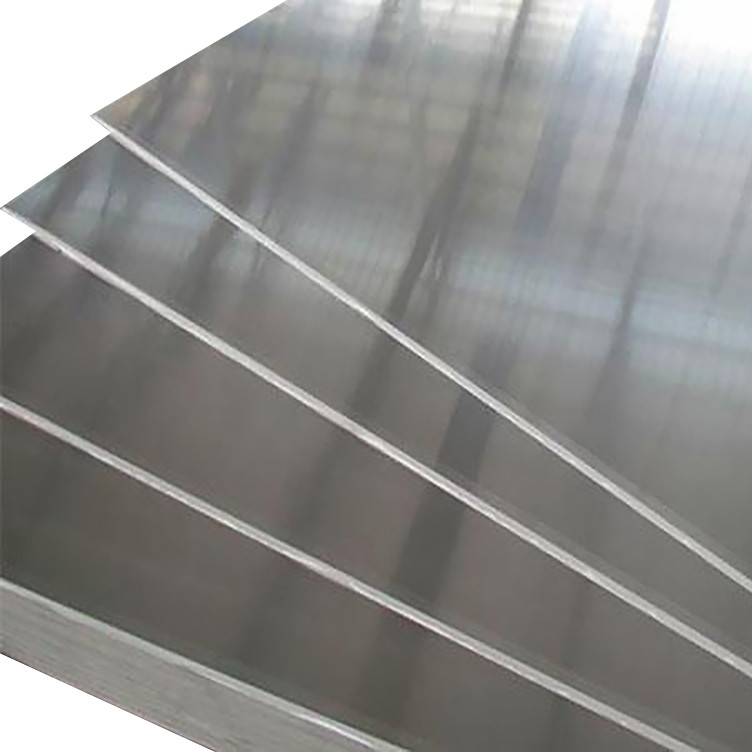

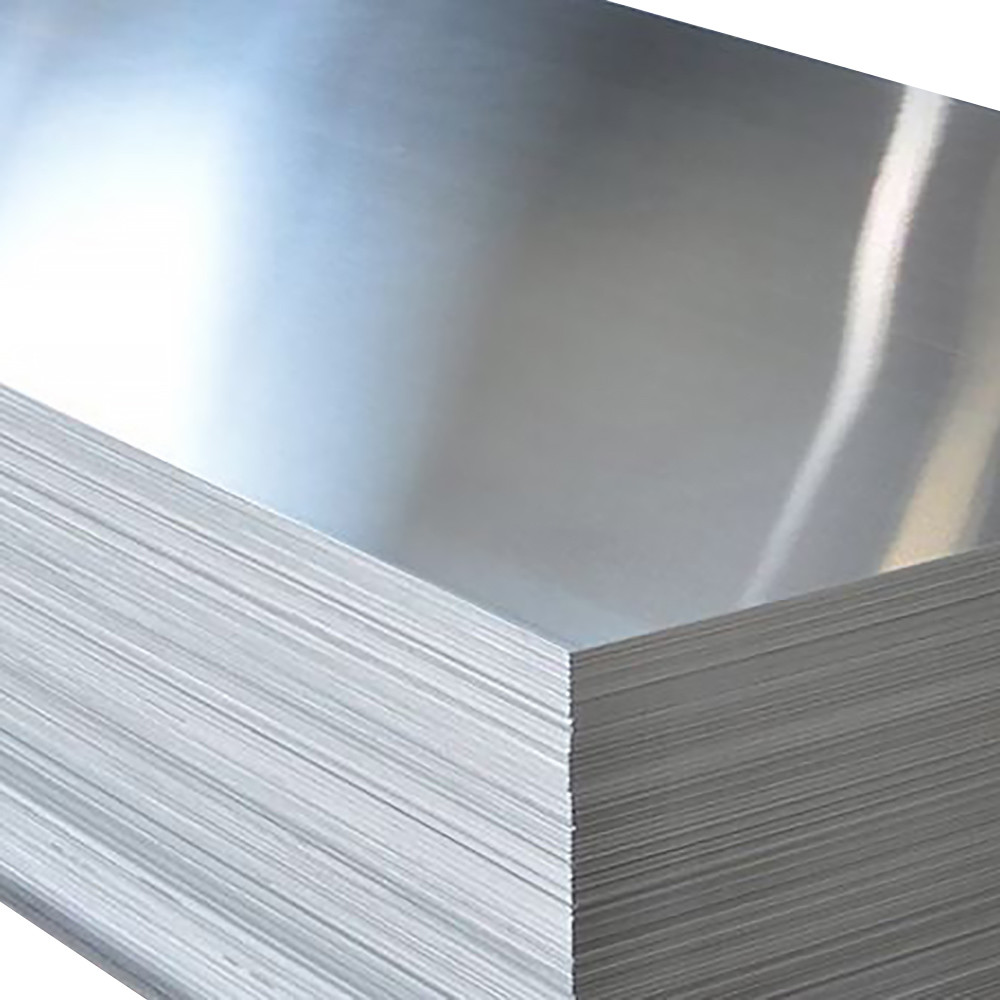

6005 Brushed Sublimation Aluminum Sheet Metal 6000 Series 50mm JIS
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | haiwo |
| Model Number | 6005 |
| Minimum Order Quantity | 1000 kilograms |
| Price | $3.50/kilograms |
| Packaging Details | Export standard package: bundled ,wooden box, suit for all kinds of transport,or be required |
| Delivery Time | 10-45 work days |
| Payment Terms | T/T |
| Supply Ability | 25000 Ton/Tons per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 6005 Brushed Sublimation Aluminum Sheet | Grade | 6000 Series |
|---|---|---|---|
| Application | Aviation Industry, Aircraft Manufacturing | Tolerance | ±1% |
| Processing Service | Bending, Decoiling, Welding, Punching, Cutting | Delivery Time | 10-45 Days |
| Standard | ASTM AISI JIS DIN GB | MOQ | 1000kg |
| High Light | 6005 Sublimation Aluminum Sheet,Sublimation Aluminum Sheet 50mm,Brushed Aluminum Sheet Metal JIS |
||
You can tick the products you need and communicate with us in the message board.
| Temper | O-H112,T3-T8,T351-T851 | |
|---|---|---|
| Processing service | cutting,bending,welding,punching | |
| Surface | Bright,anodizing,polish,other | |
| Loading port | SHANGHAI PORT |
Product Description
6005 Brushed Sublimation Aluminum Sheet 6000 Series Cold Rolled Alloy Aluminum Plate
Aluminum plate refers to the rectangular plate made of aluminum ingot rolling.
Type:① Drawing aluminum plate: The manufacturing process of repeatedly scraping the aluminum plate out of the line with sandpaper. The main process is divided into three parts: deester, sand mill and water washing. In THE PROCESS OF aluminum wire drawing, the special film technology after ANODIzing can make the surface of aluminum plate generate a skin film layer containing the metal component, clearly show every tiny silk mark, so as to make the metal matte with a fine hair luster.
② Aluminum oxide plate: the aluminum plate is placed in the corresponding electrolyte (such as sulfuric acid, chromic acid, oxalic acid, etc.) as the anode, under the action of specific conditions and applied current, the aluminum plate formed by electrolysis. The anodic aluminum plate is oxidized to form a thin layer of alumina on the surface, the thickness of which is 5 ~ 20 microns, and the hard anodic film can reach 60 ~ 200 microns.
Application: 1. Lighting 2, solar reflector 3, building appearance 4, interior decoration: ceiling, wall, etc. 5, furniture, cabinets 6, elevator 7, signs, nameplates, bags 8, car interior and exterior decoration 9. 10. Household appliances: refrigerator, microwave oven, audio equipment, etc. 11. Aerospace and military aspects, such as China's large aircraft manufacturing, Shenzhou spacecraft series, satellites and other aspects. 12, mechanical parts processing 13, mold manufacturing 14, chemical/insulation pipeline coating. 15. High quality board.
Specification
|
Brand
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
AL
|
|
6005
|
0.6-0.9
|
0.35
|
0.1
|
0.1
|
0.4-0.6
|
0.1
|
0.1
|
0.1
|
remains
|
Quality Characteristics
|
Brand
|
Tensile strength
|
Yield strength
|
Hardness
|
Elongation
|
|
6005
|
≥310Mpa
|
≥276MPa
|
HB90-110
|
11
|
| Aluminium Sheet / Aluminium Plate/Strip/Foil | ||
| 1 | Production Standard | ASTM, AISI,EN,DIN,JIS,GOST,GB,etc |
| 2 | Material | 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000 |
| 3 | Width | 50mm-2500mm or as the customer’s request |
| 4 | Longth | 50mm-8000mm or as the customer’s request |
| 5 | Thickness | Foil:0.001-0.5 ; Strip:0.01-3mm ; Sheet:0.1-6mm ; Plate:6.0-500mm |
| 6 | Size error | Thickness error:±0.005mm Width error:0.1mm |
| 7 | Surface | Coated, Embossed,Brushed, polished, Anodized,etc |
| 8 | Temper |
O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. |
| 9 | OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| 10 | Payterm | Ex-work, FOB, CIF , CFR, etc |
| 11 | Payment | T/T, L/C, Western Union, etc |
| 12 | Delivery Time | Within 3 days for our stock size,10-20days for our production |
| 13 | Package |
Export standard package: bundled ,wooden box, suit for all kinds of transport, or be required |
| 14 | MOQ | 10kg |
| 15 | Sample | Free and available |
| 16 | Quality | Certificate of Test,SGS,ISO9001,TVE |
| 17 | Export To |
Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Brazil,Thailand,Korea,India, Egypt,Kuwait,Oman,Viet Nam,South Africa,Dubai,England,Holland,Russia,etc |
| 18 | Application |
Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc |
| Mechanical Property | ||||||||
| ALUMINUM ALLOY |
Grade | Normal Temper |
Temper | Tensile Strength N/mm² |
Yield Strength N/mm² |
Elongation% | Brinell Hardness HB |
|
| Plate | Bar | |||||||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu (2XXX) |
2017 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) |
3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg (5XXX) |
5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O,H112,H | O | 290 | 145 | - | 20 | - | |
| Al-Mg-Si (6XXX) |
6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 | |
| Al-Zn-Mg (7XXX) |
7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 | |
FAQ
Q1: How do we trust your company?
A: We specialise in steel production and sales for years as golden supplier on Alibaba, headquarters locates in WUXI, JIANGSU Province, you are welcome to investigate in any ways, by all means, you could place an order in Alibaba with trade assurance which could secure your payment.
Q2: How can we guarantee quality?
A: 1 ). We can provide samples for free.We can send the samples by TNT,DHL,FEDEX,EMS,UPS or to your warehouse. 2 ). Always a pre-production sample before mass production. 3 ). Always final Inspection before shipment.
Q3: Do you have products in stock?
A: There are 10000 tons stock for various size.plsease inform us what model you need, we will send stock details to you.
Q4: How long will it take to produce my order?
A: Our normal produce time is 7-25 working days,depend on your order.
Q5: How much will the shipping cost be?
A: This will depend on the size and weight of your order and the method of shipping.
Q6: Can you help me find the shipping company?
A: Of course, if you don't work with a shipping company.We have a long-term cooperation of the transport team can provide you with lower prices, better service.
Q7: Will our goods be damaged during the long-distance transport? How to avoid it?
A: No damage, we will affix a low viscosity protective film on the surface of the product, effectively avoid scratches, easy to uncover when using, and will not leave stains on the surface.For long distance transportation we have professional experience,familiar with the packaging and arrangement of the goods, let the goods safely arrive at your destination.
Q8: Why should you buy from us not from other suppliers?
A: 1 ). Source manufacturers, leading equipment, excellent team skills. 2 ). Low price, fast delivery and excellent quality, good service. 3 ). Professional technical solution.
