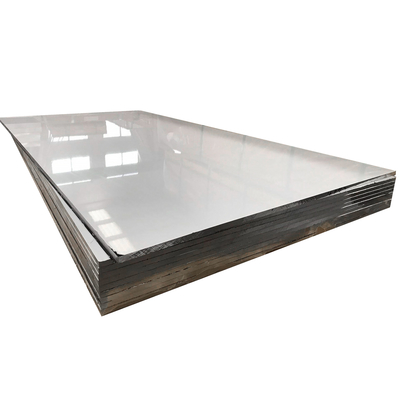

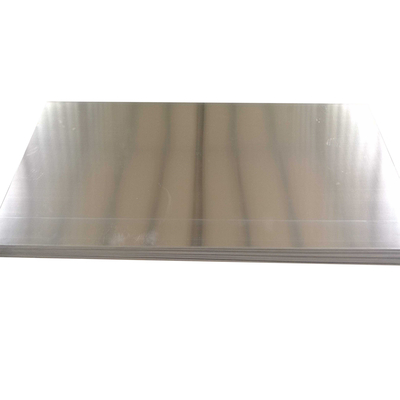

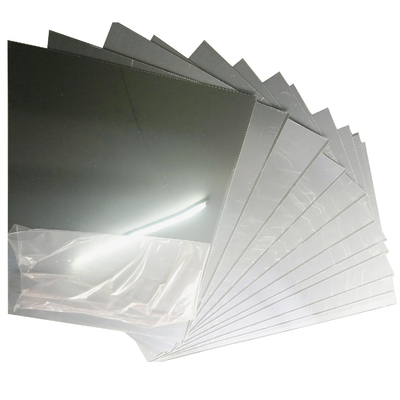

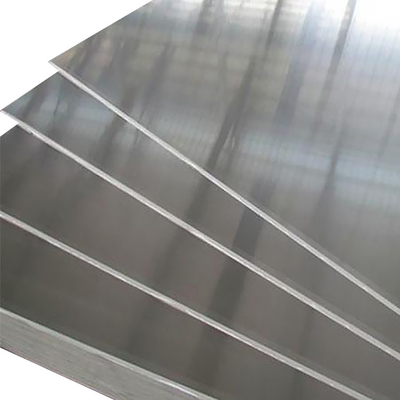

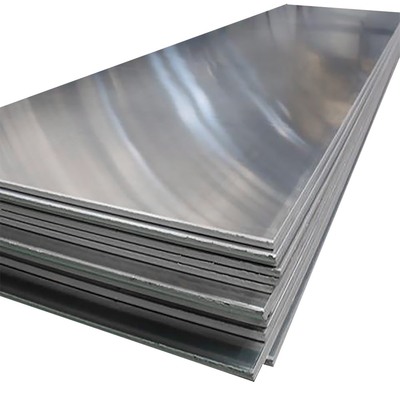

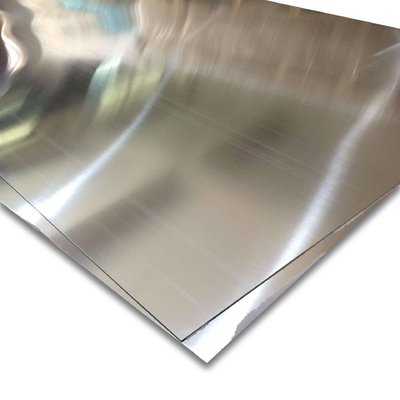

7050 Mirror Finish Aluminium Sheet Plate Alloy 0.1mm H19 Cold Hot Rolled
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | haiwo |
| Model Number | 7050 |
| Minimum Order Quantity | 1000 kilograms |
| Price | $3.50/kilograms |
| Packaging Details | Export standard package: bundled ,wooden box, suit for all kinds of transport,or be required |
| Delivery Time | 10-45 work days |
| Payment Terms | T/T |
| Supply Ability | 25000 Ton/Tons per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 7050 Alloy Aluminium Plastic Plate | Grade | 7000 Series |
|---|---|---|---|
| Temper | O-H112,T3-T8 | Application | Aviation Industry, Aircraft Manufacturing |
| Width | 50-2500mm | Surface | Bright,Anodizing,polished,Smooth PVC Film Embossed Coated,hair Line |
| High Light | 7050 Aluminium Sheet Plate,Aluminium Sheet Plate 0.1mm,Mirror Finish Aluminium Sheet H19 |
||
You can tick the products you need and communicate with us in the message board.
| Thickness | 0.13-20mm,0.2-150mm,customized | |
|---|---|---|
| Type | Sheet/plate | |
| Standard | EN,ASTM,AISI,DIN,GB.ect. | |
| Loading port | SHANGHAI PORT |
Product Description
7050 Alloy Aluminium Plastic Plate Cold Hot Rolled Checkered Mirror Finish Sheet
Aluminum-plastic composite panel (also known as aluminum-plastic panel), as a new type of decorative material, has its own unique performance, which determines its wide use: it can be used for building exterior wall, curtain wall panel, old building renovation, indoor wall and ceiling decoration, advertising signs, display platform, purification and dust prevention engineering. It belongs to a new type of building decoration material.
Aluminum-plastic composite board is made of multi-layer material composite, the upper and lower layers of high purity aluminum alloy plate, the middle is non-toxic low density polyethylene (PE) core board, the front is also pasted with a layer of protective film. For outdoor use, the front of the aluminum-plastic board is coated with fluorocarbon resin (PVDF), and for indoor use, the front of the aluminum-plastic board can be coated with non-fluorocarbon resin.
Specification
|
Brand
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
AL
|
|
7050
|
0.12
|
0.15
|
2.0-2.6
|
0.1
|
1.9-2.6
|
0.04
|
5.7-6.7
|
0.06
|
remains
|
Quality Characteristics
|
Brand
|
Tensile strength
|
Yield strength
|
Hardness
|
Elongation
|
|
7050
|
≥572Mpa
|
≥503MPa
|
HB150
|
12
|
| Aluminium Sheet / Aluminium Plate/Strip/Foil | ||
| 1 | Production Standard | ASTM, AISI,EN,DIN,JIS,GOST,GB,etc |
| 2 | Material | 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000 |
| 3 | Width | 50mm-2500mm or as the customer’s request |
| 4 | Longth | 50mm-8000mm or as the customer’s request |
| 5 | Thickness | Foil:0.001-0.5 ; Strip:0.01-3mm ; Sheet:0.1-6mm ; Plate:6.0-500mm |
| 6 | Size error | Thickness error:±0.005mm Width error:0.1mm |
| 7 | Surface | Coated, Embossed,Brushed, polished, Anodized,etc |
| 8 | Temper |
O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. |
| 9 | OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| 10 | Payterm | Ex-work, FOB, CIF , CFR, etc |
| 11 | Payment | T/T, L/C, Western Union, etc |
| 12 | Delivery Time | Within 3 days for our stock size,10-20days for our production |
| 13 | Package |
Export standard package: bundled ,wooden box, suit for all kinds of transport, or be required |
| 14 | MOQ | 10kg |
| 15 | Sample | Free and available |
| 16 | Quality | Certificate of Test,SGS,ISO9001,TVE |
| 17 | Export To |
Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Brazil,Thailand,Korea,India, Egypt,Kuwait,Oman,Viet Nam,South Africa,Dubai,England,Holland,Russia,etc |
| 18 | Application |
Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc |
| Mechanical Property | ||||||||
| ALUMINUM ALLOY |
Grade | Normal Temper |
Temper | Tensile Strength N/mm² |
Yield Strength N/mm² |
Elongation% | Brinell Hardness HB |
|
| Plate | Bar | |||||||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu (2XXX) |
2017 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) |
3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg (5XXX) |
5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O,H112,H | O | 290 | 145 | - | 20 | - | |
| Al-Mg-Si (6XXX) |
6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 | |
| Al-Zn-Mg (7XXX) |
7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 | |
| Aluminium Sheet / Aluminium Plate/Strip/Foil | ||
| 1 | Production Standard | ASTM, AISI,EN,DIN,JIS,GOST,GB,etc |
| 2 | Material | 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000 |
| 3 | Width | 50mm-2500mm or as the customer’s request |
| 4 | Longth | 50mm-8000mm or as the customer’s request |
| 5 | Thickness | Foil:0.001-0.5 ; Strip:0.01-3mm ; Sheet:0.1-6mm ; Plate:6.0-500mm |
| 6 | Size error | Thickness error:±0.005mm Width error:0.1mm |
| 7 | Surface | Coated, Embossed,Brushed, polished, Anodized,etc |
| 8 | Temper |
O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. |
| 9 | OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| 10 | Payterm | Ex-work, FOB, CIF , CFR, etc |
| 11 | Payment | T/T, L/C, Western Union, etc |
| 12 | Delivery Time | Within 3 days for our stock size,10-20days for our production |
| 13 | Package |
Export standard package: bundled ,wooden box, suit for all kinds of transport, or be required |
| 14 | MOQ | 10kg |
| 15 | Sample | Free and available |
| 16 | Quality | Certificate of Test,SGS,ISO9001,TVE |
| 17 | Export To |
Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Brazil,Thailand,Korea,India, Egypt,Kuwait,Oman,Viet Nam,South Africa,Dubai,England,Holland,Russia,etc |
| 18 | Application |
Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc |
| Aluminum Grade | |
| 1000 Series | Industrial Pure Aluminum (1050,1060 ,1070, 1100) |
| 2000 Series | Aluminum-copper alloys (2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17) |
| 3000 Series | Aluminum-manganese alloys (3A21, 3003, 3103, 3004, 3005, 3105) |
| 4000 Series | Al-Si alloys (4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A) |
| 5000 Series | Al-Mg alloys (5052, 5083, 5754, 5005, 5086,5182) |
| 6000 Series | Aluminum Magnesium Silicon Alloys (6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02) |
| 7000 Series | Aluminum, Zinc, Magnesium and Copper Alloys (7075, 7A04, 7A09, 7A52, 7A05) |
FAQ
Q1: How do we trust your company?
A: We specialise in steel production and sales for years as golden supplier on Alibaba, headquarters locates in WUXI, JIANGSU Province, you are welcome to investigate in any ways, by all means, you could place an order in Alibaba with trade assurance which could secure your payment.
Q2: How can we guarantee quality?
A:1 ). We can provide samples for free.We can send the samples by TNT,DHL,FEDEX,EMS,UPS or to your warehouse. 2 ). Always a pre-production sample before mass production. 3 ). Always final Inspection before shipment.
Q3: Do you have products in stock?
A: There are 10000 tons stock for various size.plsease inform us what model you need, we will send stock details to you.
Q4: How long will it take to produce my order?
A: Our normal produce time is 7-25 working days,depend on your order.
Q5: How much will the shipping cost be?
A: This will depend on the size and weight of your order and the method of shipping.
Q6: Can you help me find the shipping company?
A: Of course, if you don't work with a shipping company.We have a long-term cooperation of the transport team can provide you with lower prices, better service.
Q7: Will our goods be damaged during the long-distance transport? How to avoid it?
A: No damage, we will affix a low viscosity protective film on the surface of the product, effectively avoid scratches, easy to uncover when using, and will not leave stains on the surface.For long distance transportation we have professional experience,familiar with the packaging and arrangement of the goods, let the goods safely arrive at your destination.
Q8: Why should you buy from us not from other suppliers?
A: 1 ). Source manufacturers, leading equipment, excellent team skills. 2 ). Low price, fast delivery and excellent quality, good service. 3 ). Professional technical solution.
