7050 1060 Aluminum Round Square Bar H12 H114 Extruded Rod Cutting 50mm
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | haiwo |
| Model Number | 7075 |
| Minimum Order Quantity | 1000 kilograms |
| Price | $3.00/kilograms |
| Packaging Details | Export standard package: bundled ,wooden box, suit for all kinds of transport,or be required |
| Delivery Time | 10-45 work days |
| Payment Terms | T/T |
| Supply Ability | 25000 Ton/Tons per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 7050 Aluminum Bar | Grade | 7000 Series |
|---|---|---|---|
| Temper | T3 - T8,O - H112,T351 - T651,T3-T8,H112 | Tolerance | ±3% |
| Application | Engineering, Turning, Parts, Mechanical Processing | Length | 50mm-12000mm Or Cut As The Customer's Request |
| Standard | ASTM,DIN,EN,GB,JIS,GOST | Surface Treatment | Mill Finish,Anodizing,Polished,Brushing |
| High Light | Extruded Aluminum Bar,1060 Aluminum round square Bar,50mm Extruded Aluminum Bar |
||
You can tick the products you need and communicate with us in the message board.
| Hardness | HB90-110, 200, Within reasonable range | |
|---|---|---|
| Yield (≥ mpa) | 276 | |
| Ultimate strength (≥ mpa) | 310 | |
| Al (min) | 90-99.9% |
Product Description

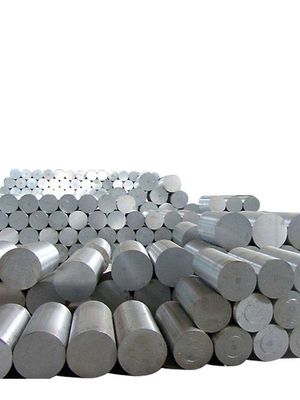

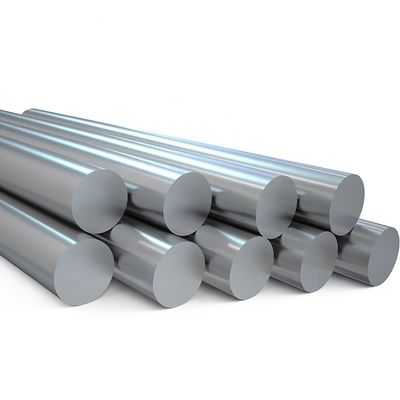

7050 1060 Aluminum round square Bar H12 H114 Custom Extruded Aluminum Rod Cutting
Aluminum rod is one kind of aluminum products. The casting process of aluminum rod includes melting, purification, impurity removal, gas removal, slag removal and casting. Aluminum rods can be roughly divided into eight broad categories, depending on the metal elements they contain.
According to different alloying element content, aluminum plates can be divided into: 1 department of XXX for the industrial pure aluminum (Al), 2 department of XXX for the aluminum bronze alloy aluminum (Al, Cu), 3 department of XXX for the aluminum manganese alloy aluminum (Al - Mn), 4 XXX series aluminum silicon alloy aluminum (Al - Si), 5 XXX series aluminum magnesium alloy aluminum (Al, Mg), 6 department of XXX for the magnesium aluminum silicon alloy aluminum (AL, Mg, Si), 7 XXX series aluminum zinc alloy aluminum [AL - zinc - Mg - (Cu)], 8 department of XXX for the aluminium with other elements. Generally, each series should be followed by three digits, each digit should have a number or letter, meaning: the second digit represents the number of controlled impurities; The third and fourth digits represent the lowest percentage of pure aluminum after the decimal point.
According to the shape can be divided into: round aluminum rod, square aluminum rod, hexagonal aluminum rod, trapezoidal aluminum rod, etc.
Specification
|
Garde
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
Al
|
|
7050
|
0.12
|
0.15
|
2.0-2.6
|
0.1
|
1.9-2.6
|
0.04
|
5.7-6.7
|
0.06
|
remains
|
Quality Characteristics
| Brand | Tensile strength | Yield strength | Hardness | Elongation |
| 7050 | ≥572Mpa | ≥503MPa | HB150 | 12 |
| Aluminium Bar/Aluminum Flat Bar /Aluminum Square Bar/ Rod | ||
| 1 | Production Standard | ASTM, AISI,EN,DIN,JIS,GOST,GB,etc |
| 2 | Material |
a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. g)7000 Series:7075,7475 |
| 3 | Outer diameter | 2mm-800mm |
| 4 | Length | 50mm-12000mm or cut as the customer’s request |
| 5 | Shape | Round, Square, Rectangular, Oval, Hexagonal,Other special-shaped shapes |
| 6 | Size error | OD error:±0.05mm Length error:0.1mm |
| 7 | Surface | Anodized,brushed,polished,mill finished,power coated,sand blast. |
| 8 | Temper |
O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. |
| 9 | OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| 10 | Payterm | Ex-work, FOB, CIF , CFR, etc |
| 11 | Payment | T/T, L/C, Western Union, etc |
| 12 | Delivery Time | Within 3 days for our stock size,10-20days for our production |
| 13 | Package |
Export standard package: bundled ,wooden box, suit for all kinds of transport, or be required |
| 14 | MOQ | 10kg |
| 15 | Sample | Free and available |
| 16 | Quality |
Mill Test Certification is supplied with shipment,Third Part Inspection(SGS/ROHS Certificate of Test) is acceptable. Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents scratches etc ,A+++ quality passed sgs and bv inspection |
| 17 | Application |
Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc |
| Garde | Chemical composition | ||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other | Al | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | 0.03 | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | - | 0.05 | 0.03 | 0.03 | 99.6 |
| 1100 | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | - | - | 0.1 | - | 0.15 | 99 | |
| 2A12 | 0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.1 | 0.3 | 0.15 | 0.1 | remains | |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-0.1 | 0.4-0.8 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 2014 | 0.5-1.2 | 0.7 | 3.9-5 | 0.4-1.2 | 0.2-0.8 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | 0.15 | remains |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.2-0.6 | 0.1 | - | 0.25 | 0.1 | 0.15 | remains |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3-0.8 | 0.2-0.8 | 0.2 | - | 0.4 | 0.1 | 0.15 | remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | 0.15 | remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | 0.15 | remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | 0.15 | 0.15 | remains |
| 5182 | 0.2 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | 0.15 | 0.15 | remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | 0.15 | 0.15 | remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | - | 0.1 | 0.1 | 0.15 | remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1 | 0.6-1.2 | 0.25 | - | 0.2 | 0.1 | 0.15 | remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-5.6 | 0.2 | 0.15 | remains | |
