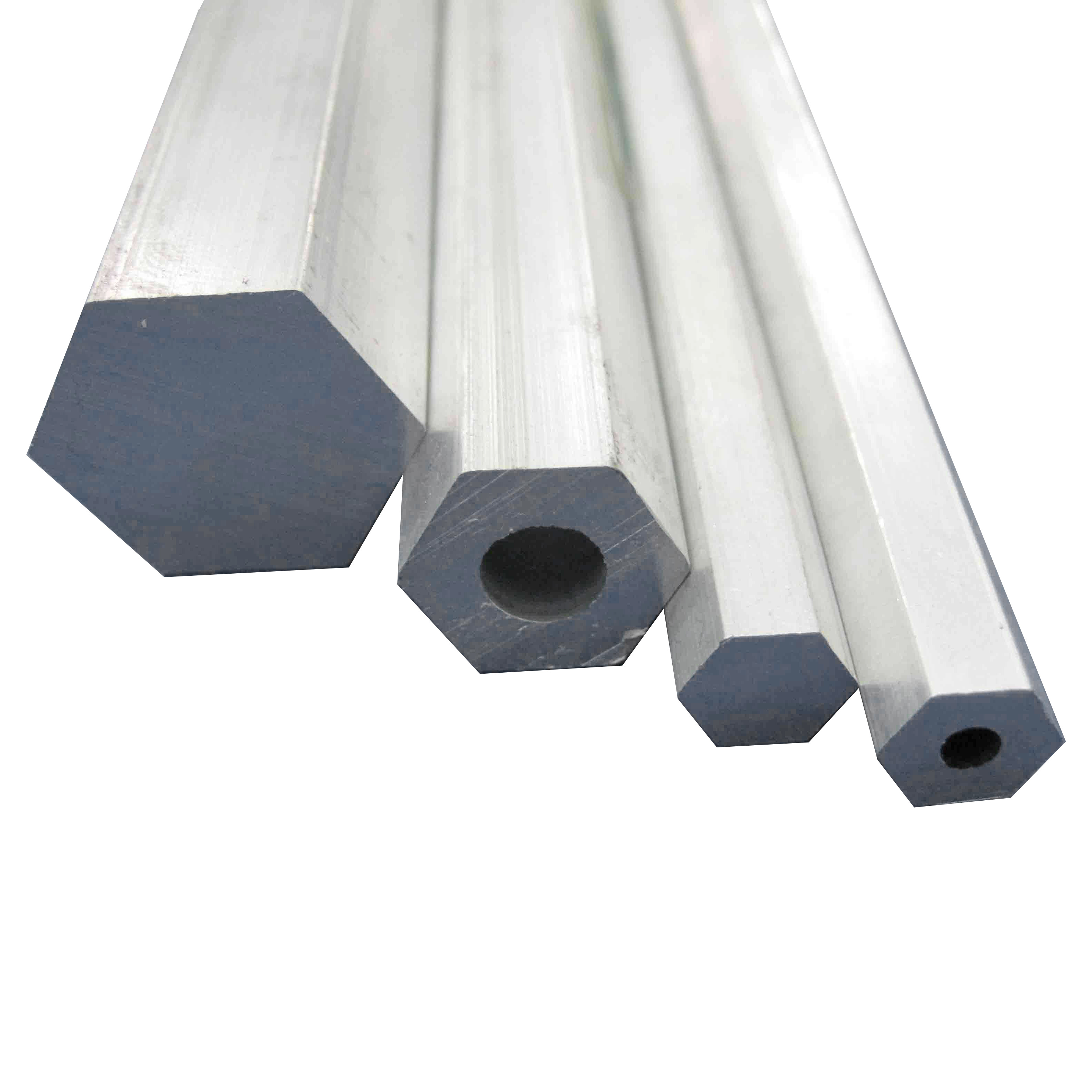

5A05 H241 Hexagonal Aluminium Bar Extruded Aluminum Bar 12000mm
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | haiwo |
| Model Number | 5A05 |
| Minimum Order Quantity | 1000 kilograms |
| Price | $3.00/kilograms 1000-4999 kilograms |
| Packaging Details | Export standard package: bundled ,wooden box, suit for all kinds of transport,or be required |
| Delivery Time | 10-45 work days |
| Supply Ability | 25000 Ton/Tons per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 5A05 Aluminum Bar | Grade | 5000 Series |
|---|---|---|---|
| Temper | O - H112, T3-T8 | Alloy Or Not | Is Alloy |
| Application | Engineering, Turning, Parts, Mechanical Processing | Surface Treatment | Brushing |
| Technique | Cold Drawn | Tolerance | ±3% |
| High Light | 5A05 Hexagonal Aluminium Bar,H241 Hexagonal Aluminium Bar,Extruded Aluminum Bar 12000mm |
||
You can tick the products you need and communicate with us in the message board.
| Shape | Round,flat,square,rectangular | |
|---|---|---|
| Surface treatment | Mill finish,anodizing,polished,brushing | |
| Hardness | 99-200, Standard, HB90-110, 200, Within reasonable range | |
| Ultimate strength (≥ mpa) | 30, 310, 320, 540, 205 |
Product Description
5A05 Aluminum Bar Rod Round Square Extruded Hexagonal Customized Aluminium Profile
Aluminum rod is a kind of aluminum products. The melting and casting process of aluminum rod includes melting, purification, impurity removal, gas removal, slag removal and casting. Aluminum rods can be roughly divided into 8 categories according to the metal elements they contain.
According to different content of alloying elements, aluminum plates can be divided into: 1. department of 1000 for the industrial pure aluminum (Al), 2. department of 2000 for the aluminum bronze alloy aluminum (Al, Cu), 3. department of 3000 for the aluminum manganese alloy aluminum (Al - Mn), 4 . 4000 series aluminum silicon alloy aluminum (Al - Si), 5. 5000 series aluminum magnesium alloy aluminum (Al, Mg), 6. department of 6000 for the magnesium aluminum silicon alloy aluminum (AL, Mg, Si), 7. 7000 series aluminum zinc alloy aluminum [AL - zinc - Mg - (Cu)], 8. department of 8000 for the aluminium with other elements. Generally, each series should be followed by three digits, each bit should have a number or letter, meaning: the second digit indicates the number of controlled impurities; The third and fourth digits indicate the lowest percentage of pure aluminum after the decimal point.
| Aluminium Bar/Aluminum Flat Bar /Aluminum Square Bar/ Rod | ||
| 1 | Production Standard | ASTM, AISI,EN,DIN,JIS,GOST,GB,etc |
| 2 | Material |
a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. g)7000 Series:7075,7475 |
| 3 | Outer diameter | 2mm-800mm |
| 4 | Length | 50mm-12000mm or cut as the customer’s request |
| 5 | Shape | Round, Square, Rectangular, Oval, Hexagonal,Other special-shaped shapes |
| 6 | Size error | OD error:±0.05mm Length error:0.1mm |
| 7 | Surface | Anodized,brushed,polished,mill finished,power coated,sand blast. |
| 8 | Temper |
O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. |
| 9 | OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| 10 | Payterm | Ex-work, FOB, CIF , CFR, etc |
| 11 | Payment | T/T, L/C, Western Union, etc |
| 12 | Delivery Time | Within 3 days for our stock size,10-20days for our production |
| 13 | Package |
Export standard package: bundled ,wooden box, suit for all kinds of transport, or be required |
| 14 | MOQ | 10kg |
| 15 | Sample | Free and available |
| 16 | Quality |
Mill Test Certification is supplied with shipment,Third Part Inspection(SGS/ROHS Certificate of Test) is acceptable. Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents scratches etc ,A+++ quality passed sgs and bv inspection |
| 17 | Application |
Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc |
| Garde | Chemical composition | ||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other | Al | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | 0.03 | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | - | 0.05 | 0.03 | 0.03 | 99.6 |
| 1100 | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | - | - | 0.1 | - | 0.15 | 99 | |
| 2A12 | 0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.1 | 0.3 | 0.15 | 0.1 | remains | |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-0.1 | 0.4-0.8 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 2014 | 0.5-1.2 | 0.7 | 3.9-5 | 0.4-1.2 | 0.2-0.8 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | 0.15 | remains |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.2-0.6 | 0.1 | - | 0.25 | 0.1 | 0.15 | remains |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3-0.8 | 0.2-0.8 | 0.2 | - | 0.4 | 0.1 | 0.15 | remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | 0.15 | remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | 0.15 | remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | 0.15 | 0.15 | remains |
| 5182 | 0.2 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.1 | - | 0.25 | 0.15 | 0.15 | remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | 0.15 | 0.15 | remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | 0.15 | 0.15 | remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | - | 0.1 | 0.1 | 0.15 | remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1 | 0.6-1.2 | 0.25 | - | 0.2 | 0.1 | 0.15 | remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-5.6 | 0.2 | 0.15 | remains | |
Specification
|
Garde
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
Al
|
|
5A05
|
0.5
|
0.5
|
0.1
|
0.3-0.6
|
3.2-3.8
|
-
|
0.2
|
-
|
remains
|
Quality Characteristics
|
Brand
|
Tensile strength
|
Yield strength
|
Hardness
|
Elongation
|
|
5A05
|
≥270Mpa
|
≥120MPa
|
HB45-75
|
more than12
|
