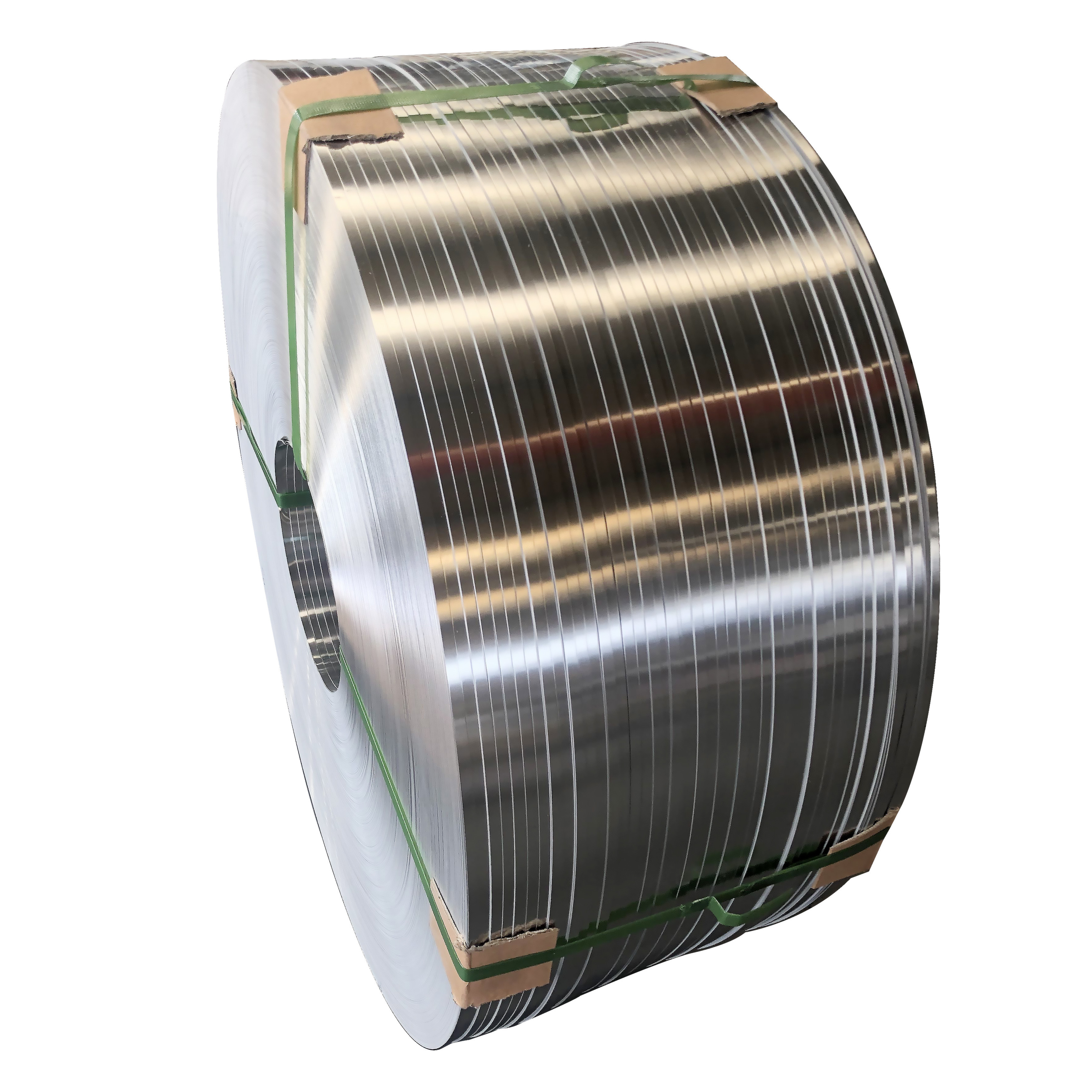

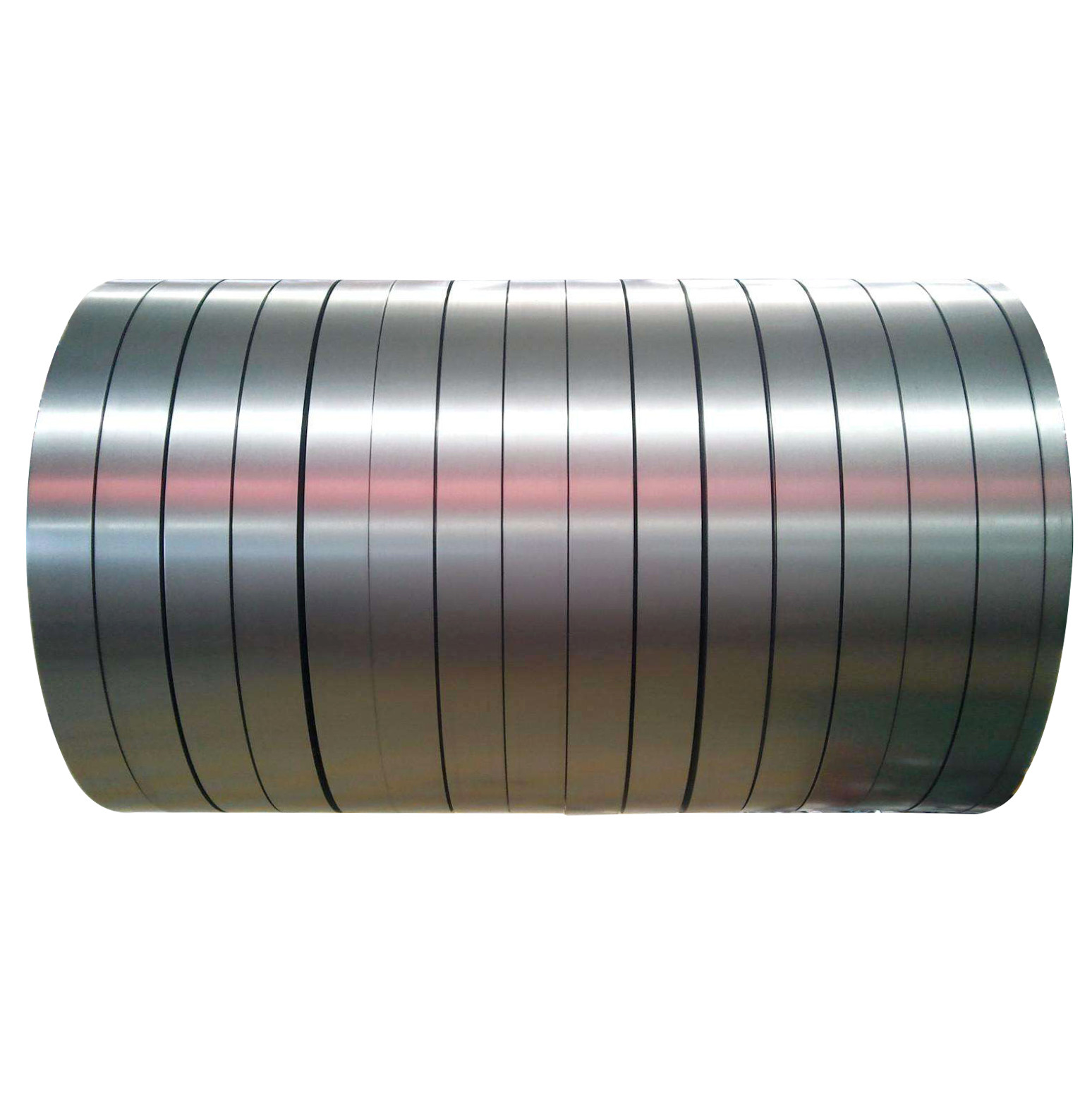

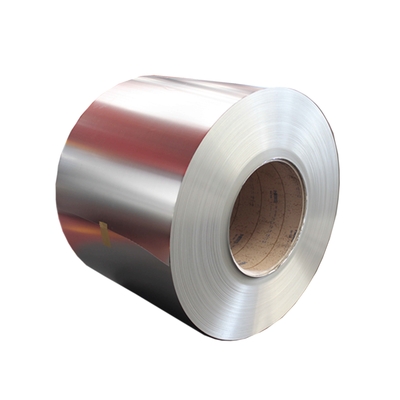

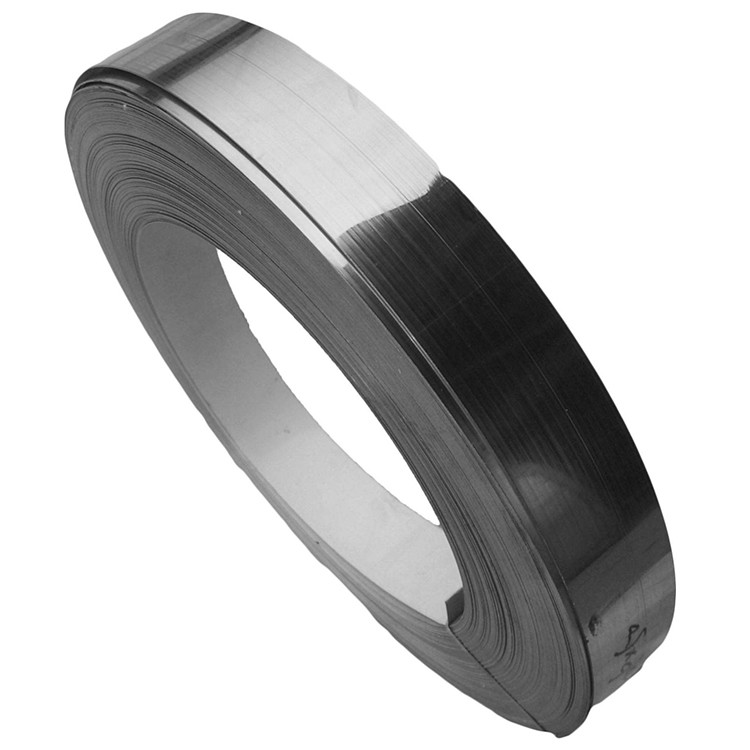

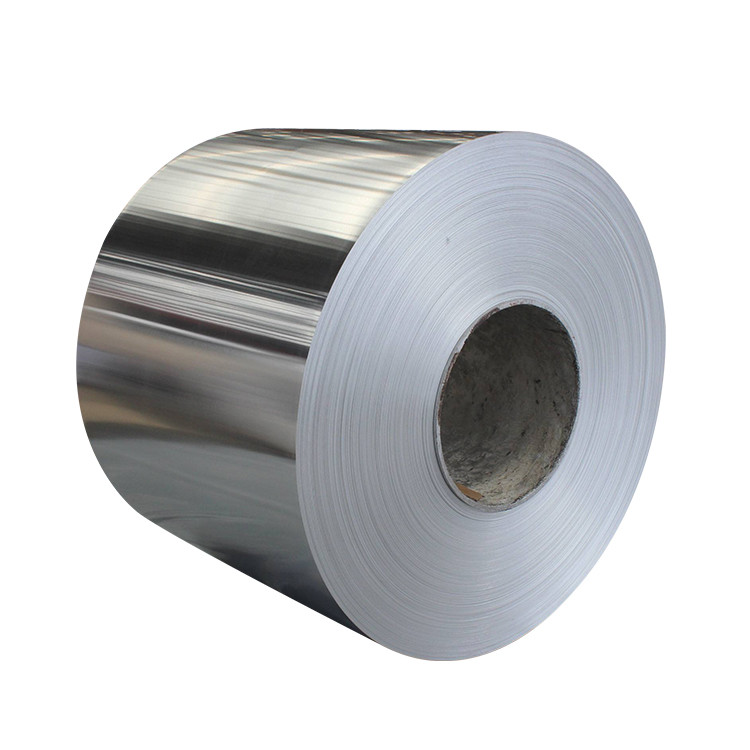

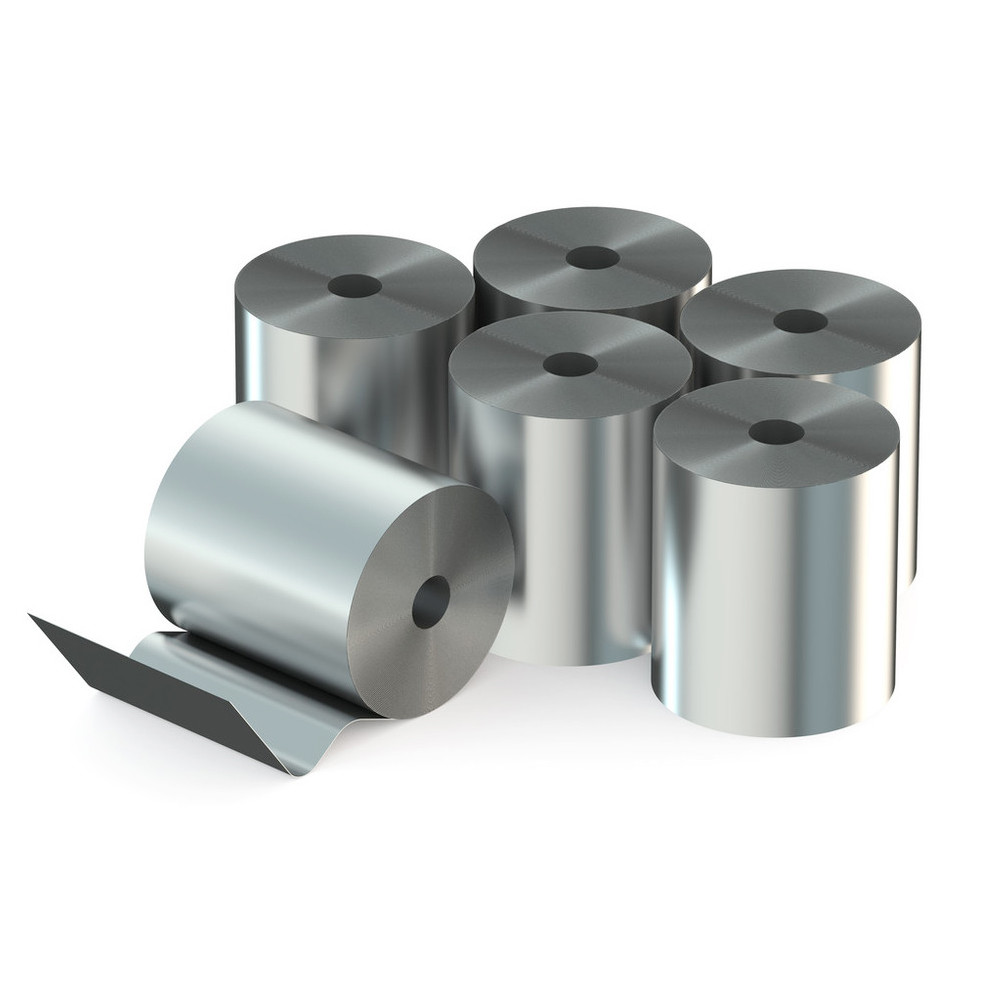

3105 5005 5052 Aluminum Coil Customized Thick For Light Ceiling
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | haiwo |
| Model Number | 5005 |
| Minimum Order Quantity | 1000 kilograms |
| Price | $3.00/kilograms |
| Packaging Details | Export standard package: bundled ,wooden box, suit for all kinds of transport,or be required |
| Delivery Time | 10-45 work days |
| Payment Terms | T/T |
| Supply Ability | 25000 Ton/Tons per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 5005 Aluminum Coil | Grade | 5000 Series |
|---|---|---|---|
| Type | Roll,Die Cut Piece,aluminum Foil | Treatment | Coated,Other,Embossed,mill Finish |
| Application | Vehicle,Aerospace,Fixture,Military Supplies, Ships Building Industry, Decoration, Industry,Manufacture | Width | Customized, 20mm-2500mm Or As The Customer's Request |
| Processing Service | Bending, Decoiling, Welding, Punching, Cutting | Tolerance | ±1% |
| High Light | 3105 5005 Aluminum Coil,5005 Aluminum Coil,5052 Aluminum Coil Customized |
||
You can tick the products you need and communicate with us in the message board.
| Temper | Soft, O, Hard, H22, H18 | |
|---|---|---|
| Treatment | Coated, Composited, Other, Embossed, mill finish | |
| Packing | Wooden Cases,Standard Packing | |
| Loading port | SHANGHAI PORT |
Product Description
5005 Customized Thick Aluminum Coil Coated 5052 3105 Aluminum Strip Light Ceiling
According to the metal elements aluminum coil contains, aluminum coil can be divided into 9 major:
① 5000 series:Represents 5052.5005.5083.5A05 series. 5000 series aluminum plate belongs to the more commonly used alloy aluminum plate series, the main element is magnesium, magnesium content between 3-5%. Can also be called aluminum magnesium alloy. The main characteristics are low density, high tensile strength, high elongation. Commonly used in aviation, such as aircraft fuel tanks. It is also widely used in conventional industry. The processing technology is continuous casting and rolling, which belongs to the hot rolled aluminum plate series, so it can do deep oxidation processing.
② 6000 series:Representative 6061 mainly contains magnesium and silicon two elements, suitable for corrosion resistance, oxidation requirements of applications. Good usability, excellent interface features, easy coating, good processing. General features: Excellent interface characteristics, easy coating, high strength, good usability, strong corrosion resistance. Typical uses: Aircraft parts, camera parts, couplers, Marine accessories and hardware, electronic accessories and fittings, decorative or various hardware, hinge heads, magnetic heads, brake pistons, hydraulic pistons, electrical accessories, valves and valve parts.
③ 7000 series:Represents 7075 contains mainly zinc. Also belongs to aviation series, is aluminum magnesium zinc copper alloy, is a heat treatable alloy, belongs to super hard aluminum alloy, has good wear resistance, can ensure no trachoma, impurities. High thermal conductivity, can shorten the molding time, improve work efficiency, the main characteristic is high hardness. It is used in the manufacturing of high stress structural parts and molds requiring high strength and corrosion resistance.
④ 8000 series:The more commonly used 8011 belongs to other series. To do the cap as the main function, but also used in the radiator, most applications for aluminum foil.
Specification
|
Brand
|
Old brand
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
|
5005
|
AlMg1
|
0.3
|
0.7
|
0.2
|
0.2
|
0.5-1.1
|
0.1
|
0.25
|
-
|
Quality Characteristics
| Brand | Tensile strength | Yield strength | Hardness | Elongation |
| 5005 | ≥270Mpa | ≥120MPa | HB45-75 | More than 12 |
| Aluminium Coil / Aluminium Alloy Coil | ||
| 1 | Production Standard | ASTM, AISI,EN,DIN,BS,JIS,GOST,GB,etc |
| 2 | Material |
a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. g)7000 Series:7075,7475 |
| 3 | Width | 20mm-2500mm or as the customer’s request |
| 4 | Length/weight | Length:Any length. weight:50-10000kg/coil, As the customer’s request |
| 5 | Thickness | Sheet:0.05-10mm; Foil:0.001-0.5 ; Strip:0.01-3mm |
| 6 | Size error | Thickness error:±0.005mm Width error:0.1mm |
| 7 | Surface | Coated, Mill, Bright, Polished, Embossed,Brushed, Anodized,sand blast, checkered,embossed, etching,etc |
| 8 | Temper |
O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. |
| 9 | OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| 10 | Payterm | EXW, FOB, CIF , CFR, etc |
| 11 | Payment | T/T, L/C, Western Union, etc |
| 12 | Delivery Time | Within 3 days for our stock size,10-20days for our production |
| 13 | Package |
Export standard package: bundled ,wooden box, suit for all kinds of transport, or be required |
| 14 | MOQ | 10kg |
| 15 | Sample | Free and available |
| 16 | Quality |
Mill Test Certification is supplied with shipment,Third Part Inspection(SGS/ROHS Certificate of Test) is acceptable. Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents scratches etc ,A+++ quality passed sgs and bv inspection |
| 17 | Application |
Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc |
| Mechanical Property | ||||||||
| ALUMINUM ALLOY |
Grade | Normal Temper |
Temper | Tensile Strength N/mm² |
Yield Strength N/mm² |
Elongation% | Brinell Hardness HB |
|
| Plate | Bar | |||||||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu (2XXX) |
2017 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) |
3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg (5XXX) |
5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O,H112,H | O | 290 | 145 | - | 20 | - | |
| Al-Mg-Si (6XXX) |
6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 | |
| Al-Zn-Mg (7XXX) |
7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 | |
FAQ
Q1: How do we trust your company?
A: We specialise in steel production and sales for years as golden supplier on Alibaba, headquarters locates in WUXI, JIANGSU Province, you are welcome to investigate in any ways, by all means, you could place an order in Alibaba with trade assurance which could secure your payment.
Q2: How can we guarantee quality?
A: 1 ). We can provide samples for free.We can send the samples by TNT,DHL,FEDEX,EMS,UPS or to your warehouse. 2 ). Always a pre-production sample before mass production. 3 ). Always final Inspection before shipment.
Q3: Do you have products in stock?
A: There are 10000 tons stock for various size.plsease inform us what model you need, we will send stock details to you.
Q4: How long will it take to produce my order?
A: Our normal produce time is 7-25 working days,depend on your order.
Q5: How much will the shipping cost be?
A: This will depend on the size and weight of your order and the method of shipping.
Q6: Can you help me find the shipping company?
A: Of course, if you don't work with a shipping company.We have a long-term cooperation of the transport team can provide you with lower prices, better service.
Q7: Will our goods be damaged during the long-distance transport? How to avoid it?
A: No damage, we will affix a low viscosity protective film on the surface of the product, effectively avoid scratches, easy to uncover when using, and will not leave stains on the surface.For long distance transportation we have professional experience,familiar with the packaging and arrangement of the goods, let the goods safely arrive at your destination.
Q8: Why should you buy from us not from other suppliers?
A: 1 ). Source manufacturers, leading equipment, excellent team skills. 2 ). Low price, fast delivery and excellent quality, good service. 3 ). Professional technical solution.
