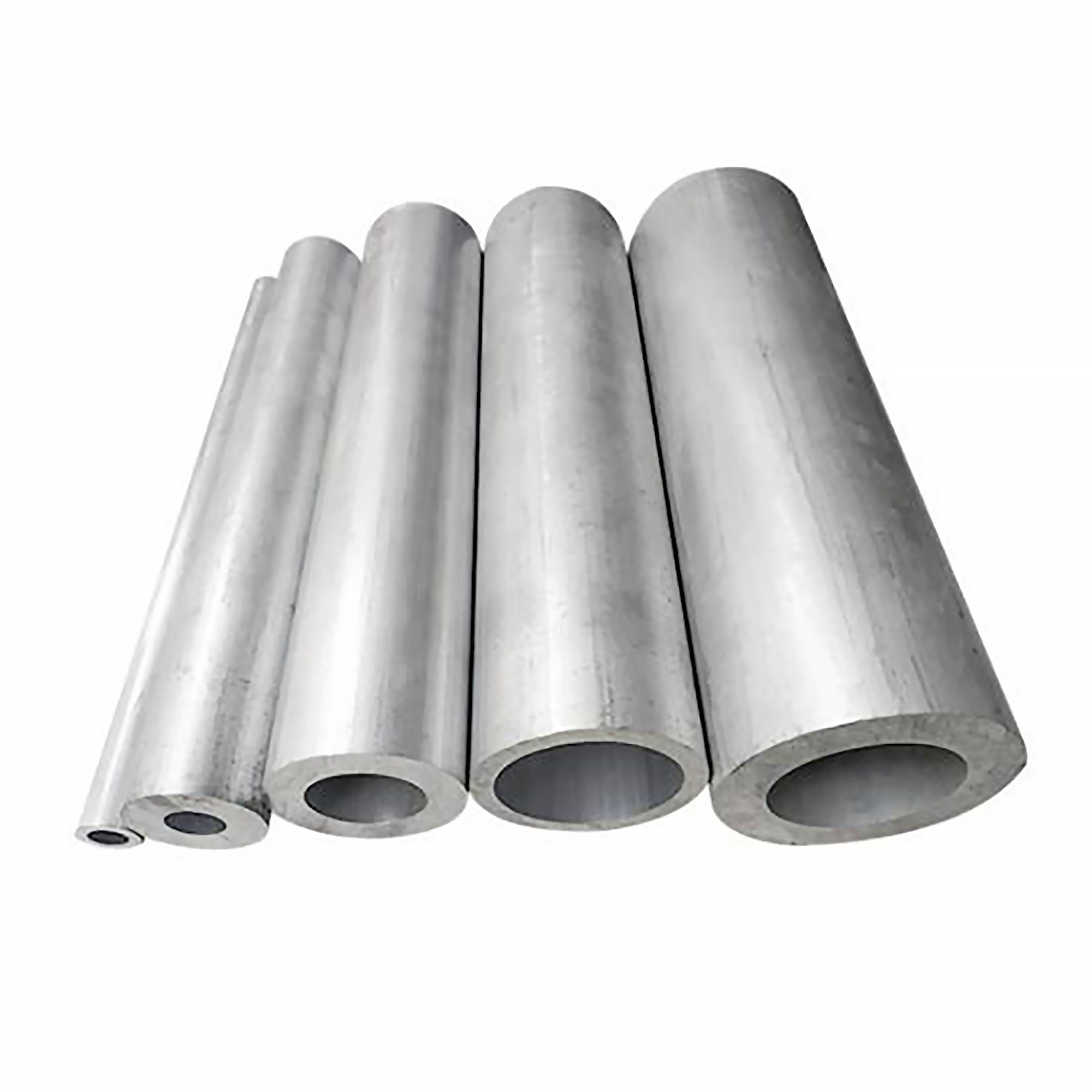

7A05 7000 Series Aluminum Pipe Tube H112 H24 Customized Specification

Place of Origin Jiangsu, China
Brand Name haiwo
Model Number 7A05
Minimum Order Quantity 1000 kilograms
Price $4.00/kilograms
Packaging Details Export standard package: bundled ,wooden box, suit for all kinds of transport,or be required
Delivery Time 10-45 work days
Payment Terms T/T
Supply Ability 25000 Ton/Tons per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 7A05 Aluminum Tube Grade 7000 Series
Hardness HB150 Tolerance ±15%
Standard ASTM,DN,EN,GB,GOST MOQ 1000KG
High Light

H112 Aluminum Pipe Tube

,

H24 Aluminum Pipe Tube

,

7A05 7000 Series Aluminum Tube

You can tick the products you need and communicate with us in the message board.
Apprication Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc
Delivery term 10-45 days
Loading port SHANGHAI PORT
Sample Free and available
Leave a Message
Apprication Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc
Product Description
7A05 Aluminum Tube 7000 Series Customized Specification Aluminium Pipe H112 H24 T4 T6

     Aluminum tube is a kind of non-ferrous metal tube, refers to the hollow metal tubular material along its longitudinal length by extrusion of pure aluminum or aluminum alloy. May have one or more closed through holes, wall thickness, uniform cross section, in a straight line or roll delivery. Widely used in automobile, ship, aerospace, aviation, electrical appliances, agriculture, electromechanical, household and other industries.

     Aluminum pipe advantages: 1. the advantage of welding technology: suitable for industrial production of thin-wall copper aluminum pipe welding technology, known as a world-class problem, is the key technology of air conditioner connecting pipe aluminum instead of copper.

2.  the service life advantage: from the perspective of the inner wall of the aluminum tube, because the refrigerant does not contain water, the copper and aluminum connecting tube inner wall will not corrosion phenomenon.3the advantage of energy saving: the connection pipe between the indoor unit and the outdoor unit of the air conditioner, the lower the heat transfer efficiency, the more energy saving, or the better the insulation effect, the more electricity saving.4excellent bending performance, easy to install, move machine.

    Surface treatment:1. Chemical treatment: oxidation, electrophoresis coating, fluorine carbon spraying, powder spraying, wood grain transfer printing. 2. Mechanical treatment: mechanical drawing, mechanical polishing, sand blasting.

Specification
Brand
Old brand
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
7A05
----
0.25
0.25
0.2
0.15-0.4
1.1-1.7
0.05-0.15
4.4-5.0
0.02-0.06
Quality Characteristics
Brand
Tensile strength
Yield strength
Hardness
Elongation
7A05
≥572Mpa
≥503MPa
HB150
12
7A05 7000 Series Aluminum Pipe Tube H112 H24 Customized Specification 0
7A05 7000 Series Aluminum Pipe Tube H112 H24 Customized Specification 1

Aluminum Tube / Aluminum Alloy Pipe
Material Grade 1000 series: 1050,1060,1070,1080,1100,1435, etc
2000 series: 2011,2014,2017,2024, etc
3000 series: 3002,3003,3104,3204,3030, etc
5000 series: 5005,5025,5040,5056,5083, etc
6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc
7000 series: 7003,7005,7050,7075, etc
Size Outer Diameter:3-800mm (At clients' request)
Wall Thickness: 0.3-150mm
Length: 10mm -12000mm (any lentth at clients' request)
Standards ASTM, ASME,EN, JIS, DIN,GB/T etc
Surface treatment Mill finished,anodized,powder coating,Sand blast,etc
Surface colors Nature, silver, bronze, champagne, black, gloden, etc,As customized
Status T4 T5 T6 or other special status
Application Widely used in Automobiles, ships, aerospace, aviation,electrical appliances,agriculture,electromechanical,household appliances, etc.
Packing Protective film + Kraft paper+ Steel belt/wooden case
Certificate ISO,CE, RoHS, etc
MOQ Future goods:500kgs, Ready Stock:1pcs.
7A05 7000 Series Aluminum Pipe Tube H112 H24 Customized Specification 2
7A05 7000 Series Aluminum Pipe Tube H112 H24 Customized Specification 3
7A05 7000 Series Aluminum Pipe Tube H112 H24 Customized Specification 4
